COMET SERIES APS
Up to 50b, perfect for use on gun-spraying units and small booms, and up to orchard and vineyard spraying and all those application that require higher-pressure performance

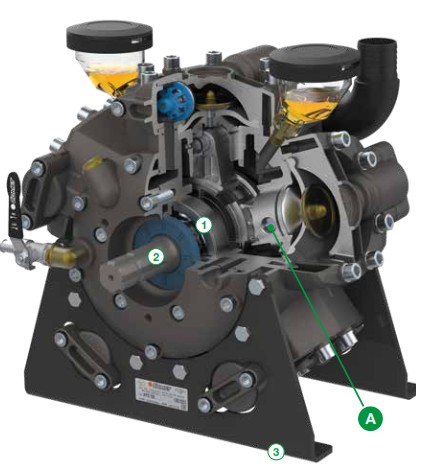

HIGHLIGHTS for the APS SERIES
A.OUTSTANDING TECHNOLOGY
The perfect bore/stroke ratio of APS is capable of minimizing diaphragm stress, thus ensuring low maintenance, extreme longevity, noiseless operating and superb priming capacity.
B.OVERSIZED COMPONENTS
APS are generally much heavier than the
competition in terms of weight. This is due to the over dimensioned parts, such as bearings ( 1 ), forge-reinforced shafts ( 2), holding brackets ( 3) that provide unique robustness, resistance to thrusts and unrivaled longevity.
C.COMPACTNESS
In order to match with the scarcity of room available on orchard sprayers, APS are distinguished by a compact (and very elegant) design.
D.VERSATILITY
Shaft plugs available in 1” 3/8 splined M ( 2 ) or F ( 4 ), and several further versions ( 5 ) ( 6 ) compatible with the most common power-transmission drives. Availability of special valves for calcium carbonate.

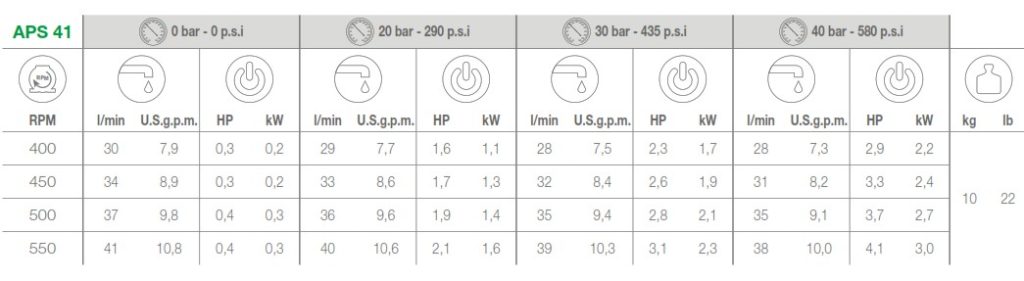

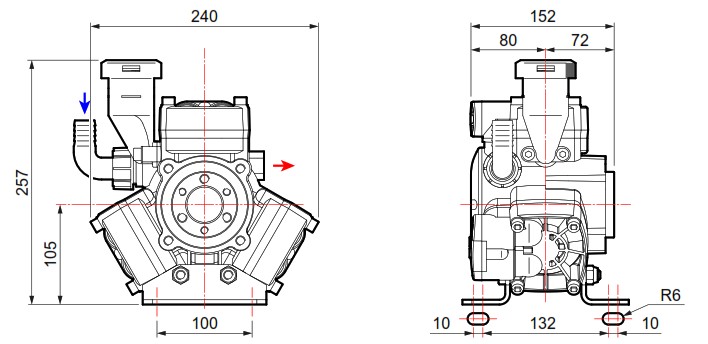

COMET APS41
COMET HIGH PRESSURE DIAPHRAGM PUMP APS41
Configuration: 3 diaphragms in NBR.
Parts in contact with spray liquid: anodized aluminum.

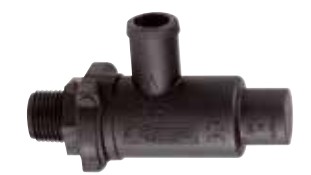

On request: safety valve and PTO protection.
Suction-delivery valves all positioned on delivery side.
Cataphoresis treatment on motor-pump versions.

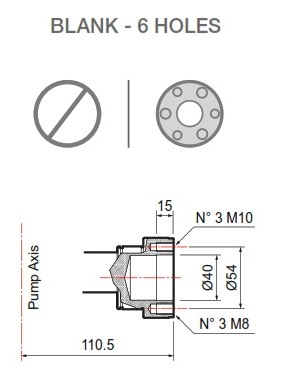

SHAFT : 6-HOLES SINGLE SHAFT
IDEAL DESTINATION OF USE :
small booms and gun-spraying units
MAIN BENEFITS
1. Perfect bore/stroke ratio capable to minimize diaphragm stress.
2. Oversized components that provide unique robustness, resistance to thrusts and unrivalled longevity.
3. Extremely compact in order to match with the scarcity of room available on smaller sprayers.

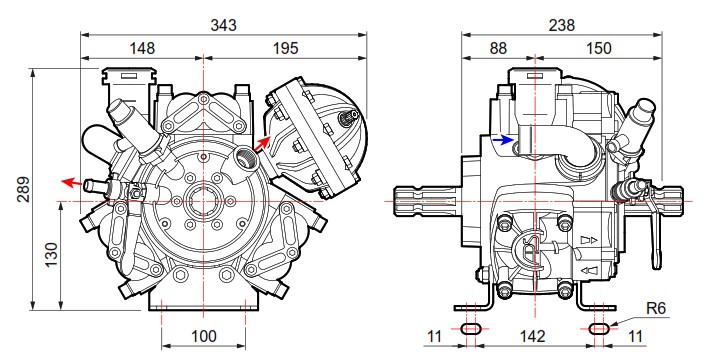

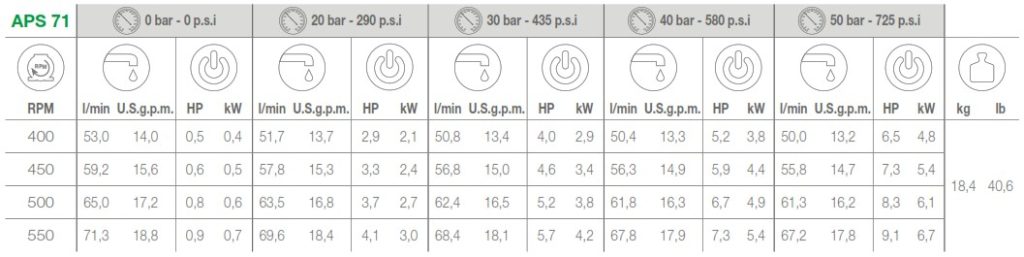

COMET APS71
COMET HIGH PRESSURE DIAPHRAGM PUMP APS71
Configuration: 3 diaphragms in NBR
Parts in contact with spray liquid: anodized aluminum.
Standard: pressure accumulator and safety valve.
Complete with Feet – pump support

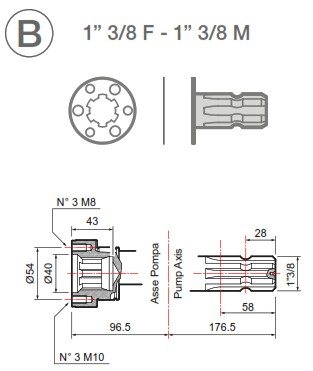

SHAFT : 1⅜F-1⅜M
IDEAL DESTINATION OF USE :
small booms and gun-spraying units
SAFETY VALVE INCLUDED IN CONFIGURATION, AS A STANDARD
MAIN BENEFITS
1. Perfect bore/stroke ratio capable to minimize diaphragm stress.
2. Oversized components that provide unique robustness, resistance to thrusts and unrivalled longevity.
3. Extremely compact in order to match with the scarcity of room available on smaller sprayers.
4. Availability of special valves for calcium carbonate.

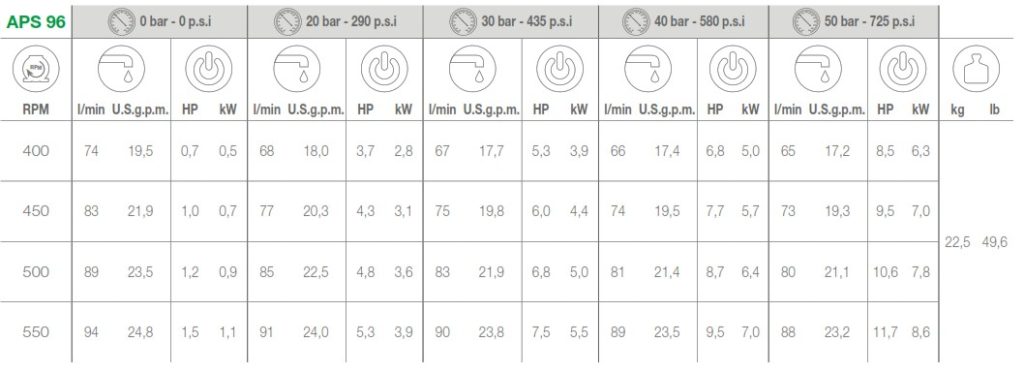

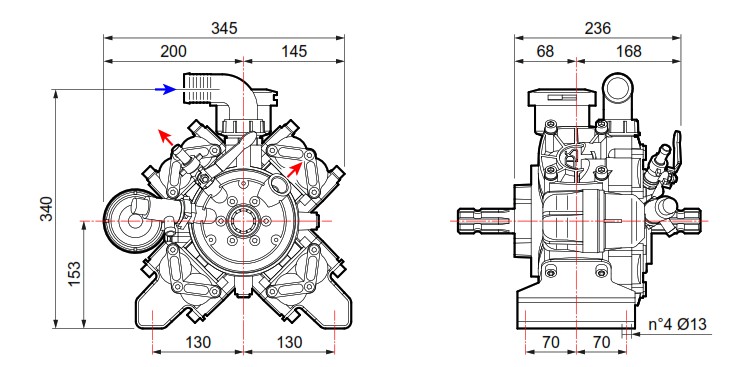

COMET APS96
COMET HIGH PRESSURE DIAPHRAGM PUMP APS96
Configuration: 4 diaphragms in NBR
Parts in contact with spray liquid: anodized aluminum.
Standard: pressure accumulator and safety valve.
Complete with Feet – pump support

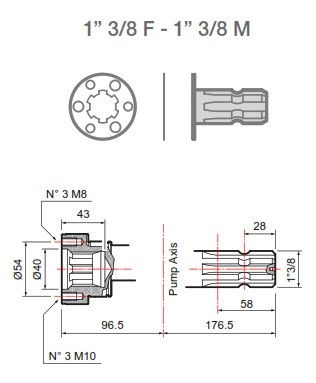

SHAFT : 1⅜F-1⅜M
IDEAL DESTINATION OF USE :
small booms and gun-spraying units
SAFETY VALVE INCLUDED IN CONFIGURATION, AS A STANDARD
MAIN BENEFITS
1. Perfect bore/stroke ratio capable to minimize diaphragm stress.
2. Oversized components that provide unique robustness, resistance to thrusts and unrivalled longevity.
3. Extremely compact and capable of matching with the scarcity of room available on many sprayers.
4. ON REQUEST : Availability of special valves for calcium carbonate.

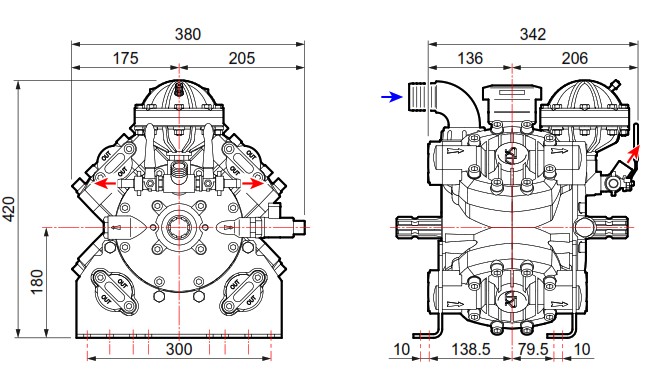

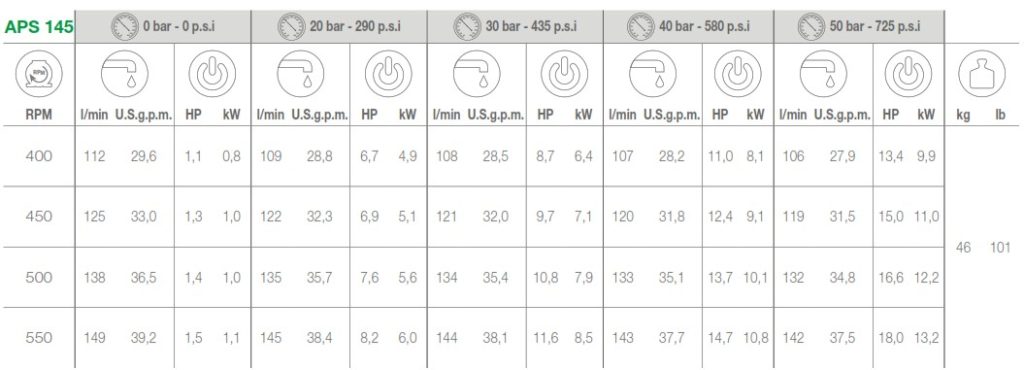

COMET APS145
COMET HIGH PRESSURE DISPHRAGM PUMP APS145
Configuration: 4 diaphragms in NBR.
Parts in contact with spray liquid: anodized aluminium.
Standard: pressure accumulator and safety valve.
Complete with Feet

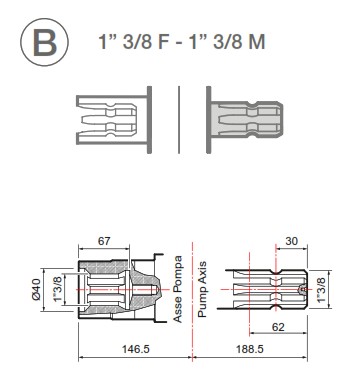

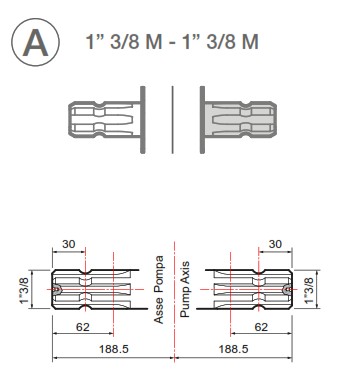

SHAFT : 1⅜M-1⅜M or 1⅜M-1⅜F
SAFETY VALVE INCLUDED IN CONFIGURATION, AS A STANDARD
IDEAL DESTINATION OF USE :
vineyards and orchards sprayers
MAIN BENEFITS
1. Perfect bore/stroke ratio capable to minimize diaphragm stress.
2. Oversized components that provide unique robustness, resistance to thrusts and unrivaled
longevity.
3. Extremely compact in order to match with the scarcity of room available on orchard sprayers.

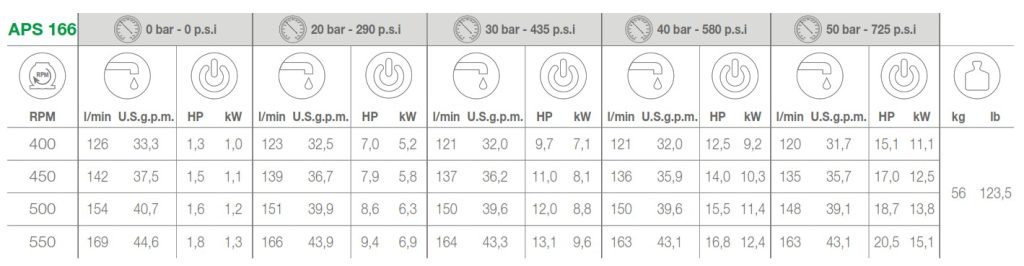

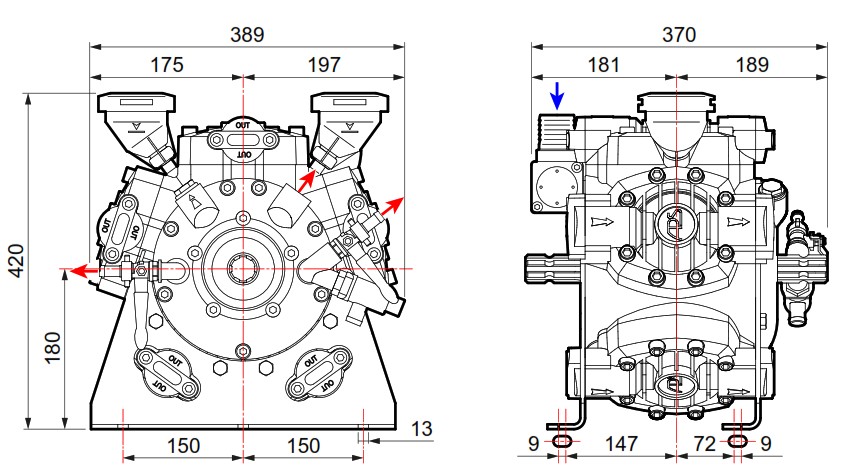

COMET APS166
COMET HIGH PRESSURE DIAPHRAGM PUMP APS166
Configuration: 5 diaphragms in NBR.
Parts in contact with spray liquid: anodized aluminum.
Standard: pressure accumulator and safety valve.
Complete with Feet

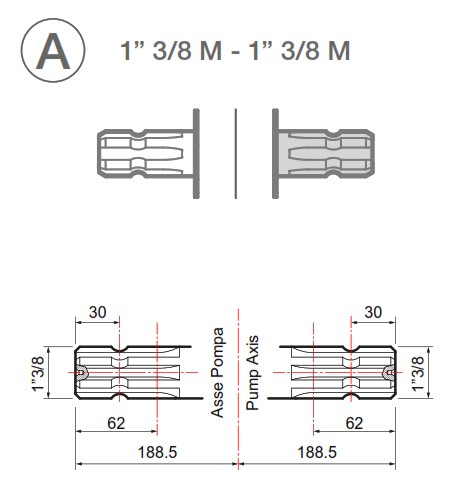

SHAFT : 1⅜M-1⅜M
IDEAL DESTINATION OF USE :
vineyards and orchards sprayers
SAFETY VALVE INCLUDED IN CONFIGURATION, AS A STANDARD
MAIN BENEFITS
1. Perfect bore/stroke ratio capable to minimize diaphragm stress.
2. Oversized components that provide unique robustness, resistance to thrusts and unrivaled longevity.
3. Extremely compact so that it can fit despite the scarcity of room available on orchard sprayers.
We stock a considerable amount of spare parts for all the pumps in our range. We offer both loose parts (i.e. diaphragms, springs, hose tails) or service kits for general or basic maintenance. Please do not hesitate to contact us with your requirements.
