NOZZLES and the like

air-Injector flat spray nozzles id3

AIR-INJECTOR FLAT SPRAY NOZZLES ID3 120
Extremely low-drift, air-injector flat spray nozzle for professional use.
Up to 90% drift reduction depending on nozzle size, pressure and environment.
The long injector design ensures high drift stability over a wide pressure range.
Timely application even under adverse weather conditions.
Increased work-rate due to flexible use over a wide pressure range : adaptation by changing the driving speed and l/ha rate without nozzle changes.
Very good deposition structure and crop penetration.
Available size : 02- 08 (ISO)
Spray angle 120°
Material POM
Pressure Range : 2 – 4 – 8 bar
Droplet size : Extreme coarse – medium
Application Area : Plant protection products and growth regulators – Liquid Fertilizer – Border application can be combined with border nozzle IS 80 – Golf Courses

LECHLER NOZZLE ID3 AIR INDUCTED

air-Injector flat spray nozzles idk

AIR-INJECTOR FLAT SPRAY COMPACT NOZZLES IDK
Very low drift, air injector flat spray nozzle with wide droplet spectrum
Up to 90% drift reduction depending on nozzle size, pressure and environment.
Very low drift and loss-reducing in the pressure range up to 3.0 (depending on size nozzle)
Available size : 02- 06 (ISO)
Spray angle 120°
Material POM
Pressure Range : 1 – 1.5 – 3 – 6 bar
Droplet size : Extreme coarse – medium
Application Area : Plant protection products and growth regulators – Liquid Fertilizer – Spray frames – Border application can be combined with border nozzle IDKS 80 – Golf Course – backpack Sprayers – Greenhouses

air-Injector flat spray nozzles idkt

AIR-INJECTOR SYMMETRICAL TWIN FLAT SPRAY COMPACT NOZZLES IDKT
Very low drift, air-injector twin flat spray nozzle for optimized deposition and reduced spray shadow
Up to 90% drift reduction depending on nozzle size, pressure and environment.
Compact design.
Optimum deposition on foliage and vertical target surfaces thanks to symmetrical twin flat spray jet.
Reduced spray shadow.
Drift reducing up to 3bar depending on the size of the nozzles
Available size : 02- 06 (ISO)
Spray angle : 120°
Material POM
Pressure Range : 1 – 1.5 – 3 – 6 bar
Droplet size : Extreme coarse – medium
Application Area : Plant protection products and growth regulators – Spray frames – Border application can be combined with border nozzle IDKS 80 – Golf Course – Greenhouses

air-Injector flat spray nozzles is

AIR-INJECTOR OFF CENTRE NOZZLES IS 80
Extremely low drift, air injector off centre nozzle for border application and banding.
Same JKI drift reduction class in combination with ID3 nozzles in the field spray boom.
Volume flow adapted for optimum cross distribution in combination with ID3 nozzles of the same size.
Asymmetrical spray pattern2 (20°+60° to vertical axis)
Precise edge application along water curses and field boundaries
Optimum protection of neighbouring crops (field edge application) or row/special cultures (herbicide banding/underlie spraying)
Available size : 02- 06 (ISO)
Spray angle : 80°
Material POM

air-Injector flat spray nozzles idks

AIR-INJECTION OFF CENTRE COMPACT NOZZLES IDKS 80
Extremely low drift, air injector off centre nozzle for border application and banding.
Same JKI drift reduction class in combination with IDK and IDKT nozzles in the field spray boom.
Volume flow adapted for optimum cross distribution in combination with IDK and IDKT nozzles of the same size.
Asymmetrical spray pattern2 (20°+60° to vertical axis)
Precise edge application along water curses and field boundaries
Optimum protection of neighbouring crops (field edge application) or row/special cultures (herbicide banding/underlie spraying)
Available size : 02- 06 (ISO)
Spray angle : 80°
Material POM
Pressure range with Sprayer/Broadcast Spraying : 1 – 1.5 – 3 – 6 bar
Pressure range with Vertical Sprayer boom : 8 – 15 bar
Droplet size : Very Coarse – medium
Application Area: Border nozzle – Band spraying in orchards and vineyards – vertical boom – Spray frame – Backpack sprayers – Greenhouses

off centre spray nozzle oc

OFF CENTRE FLAT SPRAY NOZZLES OC 90
Off centre nozzles for border application and banding
Laterally off-set orifice
Asymmetrical flat spray nozzle
Available size : 02- 30
Spray angle : 90°
Material : Brass
Pressure range : 1.5 – 2.5 – 5 bar
Droplet size : Medium – fine
Application Areas : Border nozzle, band spraying in orchards and vineyards, vertical boom, spray frame, backpack sprayers, greenhouses, Riding area floor.

arag standard flat nozzles sf

ARAG STANDARD FLAT NOZZLES SF
Made of molded Delrin®, a polymer ensuring high chemical stability and an exceptionally long useful life.
Suitable for herbicides, fungicides and pesticides
If properly fitted onto the boom and at the right distance from the area to be sprayed, they ensure smooth coverage.
Max Pressure: 1.5÷7 bar
Angle : 80° and 110°
Available size angle 80°: 01 – 10
Available size angle 110°: 01 – 15

arag low drift nozzles ld

ARAG LOW DRIFT NOZZLES LD
Made of molded Delrin®, a polymer ensuring high chemical stability and an exceptionally long useful life
They reduce the production of small drops which are more sensitive to wind movement compared to the Standard Flat Fan models.
They considerably reduce drift in windy conditions.
They help reducing environmental impact by decreasing the percentage volume of driftable droplets, minimising off-target spray contamination.
Suitable for herbicides, fungicides and pesticides.
Max Pressure: 1.5÷7 bar
Available size angle 80°: 01 – 05
Available size angle 110°: 01 – 05

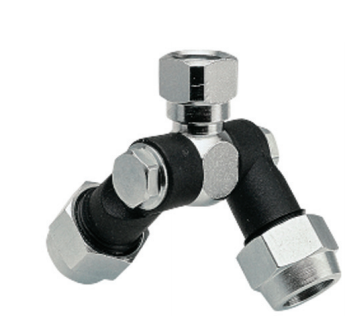

nozzle accessories
