COMET MEDIUM PRESSURE DIAPHRAGM PUMPS - PTO

MEDIUM PRESSURE PUMP P48
Configuration: 2 diaphragms in NBR.
Parts in contact with spray liquid: plastic-coated aluminium.
Standard: pressure accumulator.
SHAFT : 6-HOLES SINGLE SHAFT

comet pump p48 medium pressure spray pto pump shaft diaphragms crop agricultural treatments

COMET P48

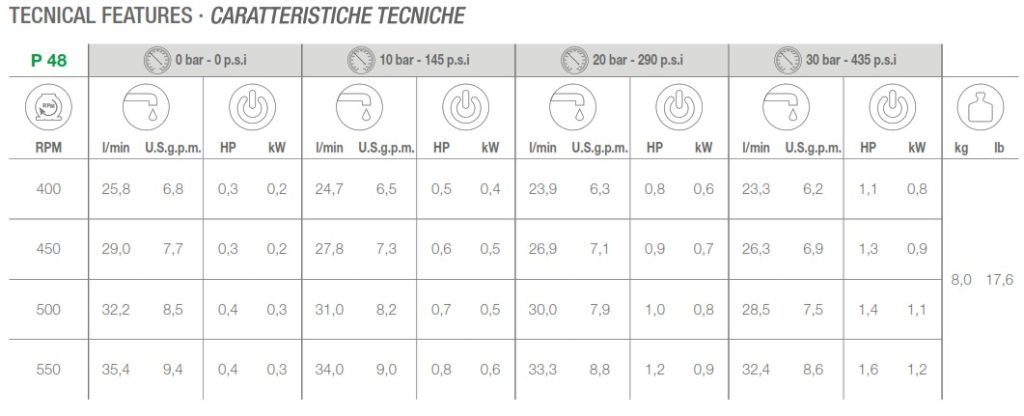

COMET PUMP P48 OUT PUT PERFORMANCES FLOW RATE AND WEIGHT

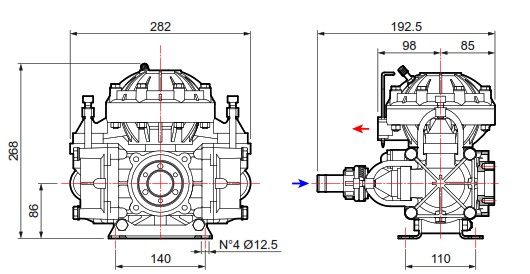

COMET P48 DETAILS OF DIMENSIONS AND WEIGHT

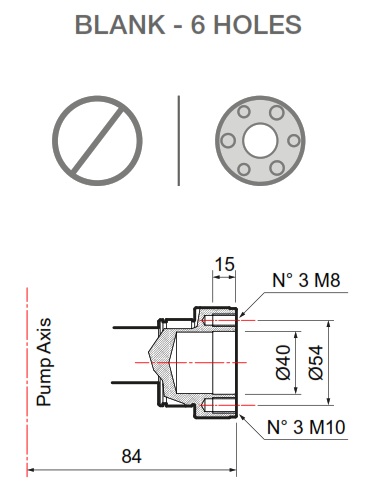

COMET PUMP P48 SHAFT DETAILS

AVAILABLE ATTACHMENTS / IMPLEMETS for SHAFT

– GEARBOX TO SUIT MOTOR Extension 3 : SAE J 609RR 1:6.44 – 3600 rpm i.e. HONDA GX160Q
– GEARBOX TO SUIT MOTOR Extension 4 : SAE J 609RR 1:6.44 – 3600 rpm i.e. HONDA GX240Q

– SHAFT PORTION : ADAPTER : SPLINE 1⅜ on 6 holes flange
– SHAFT PORTION : ADAPTER : CYLINDRIC 30mm on 6 holes flange

Comet P48 is and evergreen and staple in both Comet’ s production and the New Zealand market.
This compact 2 cylinder pump offers high resistance to corrosion thanks to the parts in contact with liquid, being made of plasticized aluminium.
Designed for spraying treatments in small to medium sized crops, it can be the perfect ally for the traditional agricultural application mounted or trailed machines, rototillers and motor-pump units. Still, the range of possible applications, both in agriculture and industry is wide, thanks to its simple versatility and compactness.

Ideal as part of a motor and pump assembly
Motor Pump range
