NOZZLES ACCESSORIES
NOZZLE FILTERS
Available both cylindrical and cup shape, screen from 32M up to 120M.
Cylindrical nozzle filters are available with the option of the Check Valve.
ALL OUR FILTERS ARE ISO COLOR CODED

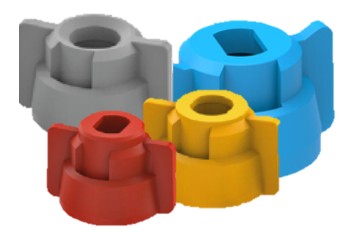

NOZZLE CAPS
Available both American style (i.e. ARAG, Geoline, TeeJet) and European style (i.e. LECHLER or HARDI), models suitable for use with the vast majority of nozzles and nozzle holders.
All our nozzle caps come complete with gasket. Spare gaskets are also available as loose parts.
The American style nozzle caps are available in a range of different color options. The color of the caps is non-related to ISO color codification.
Alternative colors can be procured on demand, for bulk quantity-orders.
NOZZLE HOLDERS and ADAPTERS

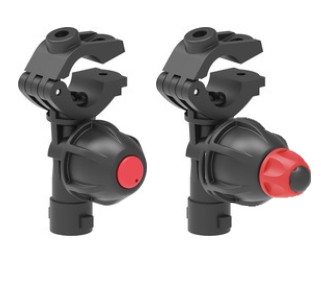

SINGLE NOZZLE HOLDERS : TUBE CLAMP + BAYONET
Single Nozzle Holders (SNH) in our range, come complete with Standard Check Valve, available with spigot size 07mm or 10mm, clamp for tube size 20mm, ½” and ¾”.
Spare diaphragms for the check valved and spare o’rings for the spigot are available on request.
On request we can supply or install the Adjustbale Check Valve.

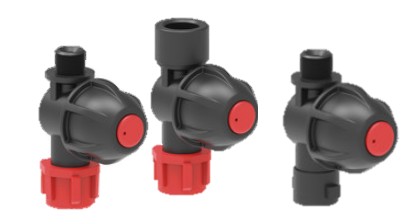

SINGLE NOZZLE HOLDERS : THREAD CONNECTION TO BOOM
We feature a broad spectrum of nozzle holders that connect via thread (instead of connecting via clamp) and still come complete with check valve.
They are available in different versions:
1/4”M BSP + screw-on cap 3/8”
3/8”F BSP + screw-on cap 3/8”
11/16”FUNI + screw-on cap 3/8”
1/4”M BSP + bayonet cap
For the check valve : Replacement diaphragms and “body” are available as spare parts.
ADJUSTABLE CHECK VLAVE AVAILABLE ON REQUEST.

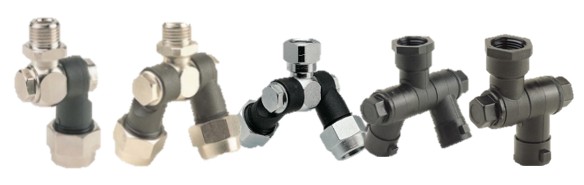

DIVERSE NOZZLE HOLDERS AND SWIVELS
SWIVLE NOZZLE HOLDERS available single arm and double arm, connection thread ¼”M or ¼”F – brass spare nut available.

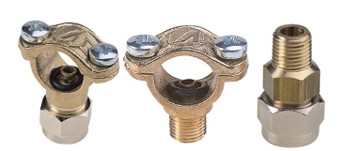

FIXED NOZZLE HOLDERS WITH THREAD body made of brass – connection ¼”M – brass spare nut available
FIXED NOZZLE HOLDERS WITH CLAMP body made of brass
connection inlet : tube clamp ½” and spigot 7mm ,
outlet options:
⅜”M with nut – brass spare nut available.
¼”M or ¼”M
SINGLE NOZZLE HOLDER : SIDE CLAMP + BAYONET
Available with spigot size 10 and clamp for tube ½”
On request we can supply or install the Adjustbale Check Valve.
Loose Replacement Diaphragms available as spare parts.
TRIPLE NOZZLE HOLDER : PIPE CLAMP + BAYO
Available with spigot size 10 and clamp for tube ½”
On request we can supply or install the Adjustbale Check Valve.
Loose Replacement Diaphragms available as spare parts.

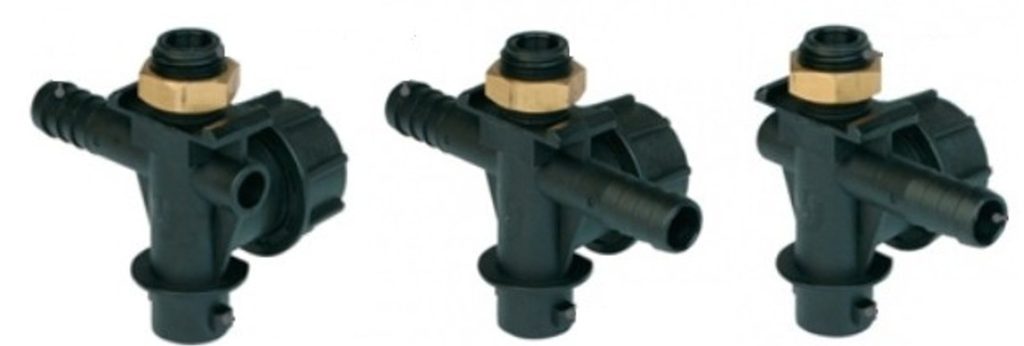

DRY BOOM NOZZLE HOLDERS
Nozzle Holders with check-valve (diaphragms in EPDM), for dry booms (hose tails 136mm) and bayonet system nozzle connection.
Suitable for use with Bayonet Caps, American Coupling Version.
SELEJET FLOW STOP VALVE
Air closure valve
Pneumatic valve (normally closed)
Suitable for all nozzle holders c/w diaphragm check valve
Made in Polypropylene reinforced Fyber Glass
EPDM or Viton® gaskets; Stainless steel spring
Air consumption 0,0069 lt/cycle (0,0146 CFM)
SELEJET FLOW-STOP NOZZLE HOLDERS TWINS
Twin Quick fitting nozzle holder with “Flow Stop”
Maximum operating pressure 8 bar (115 PSI)
Air consumption 0,0069 lt/cycle (0,0146 CFM)
Viton® gaskets
Suitable for booms with automatic selection of nozzle, operated by Computer

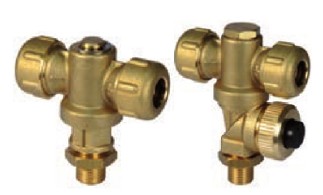

BRASS NOZZLE HOLDERS for orchard sprayers
Nozzle holder with brass body available in double version, with and without check valve. Connection 1/4″M.
3-OUTLETS version available on request.
Please note : plate, conveyor, filter and gasket or nozzles to be ordered separately

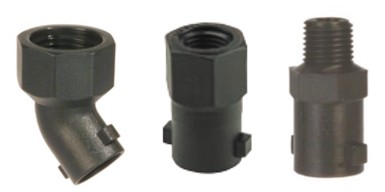

NOZZLE HOLDERS ADAPTERS FROM THREAD TO BAYONET
Available STRAIGHT options :
¼”Mbsp
¼”Mnpt
¼”Fnpt
Available ANGLE 45° options :
½”Fbsp
¾”Fbsp

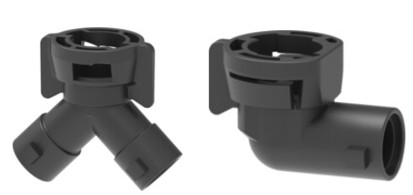

BAYONET ADAPTERS
Boom end adapter ¾”F and ½”F, angle 45° to bayonet male
Bayonet adapters 90° to bayonet male

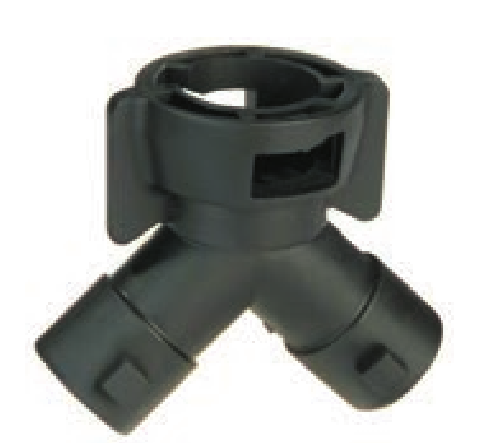

Bayonet adapters 45° to DOUBLE bayonet male

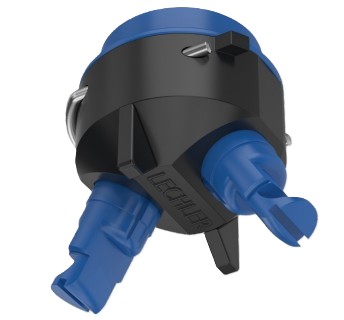

LECHLER TWIN SPRAY CAP
Bayonet combination cap for air-injector nozzles and flat spray nozzles.
This specialty cap allows and enhanced deposition, thanks to the possible combination of low-drift injector nozzles and standard flat spray nozzles. Its assembly is easy, does not require tools and can be accomplished through a simple and immediate plug-in clip system.
Available versions for MultiJet and HARDI bayonet system or with intermediate and extension adapters.
LECHLER SPECIALTY ADAPTERS EXTENSIONS
Intermediate adapter – RAU System – Extension 20mm
Extension adapter – MultiJet System – Extension 32mm
HOSE DRIPS WITH QUICK COUPLING
Thread : ¼” NPT
Length : 610 mm
Connection : Bayonet Cap

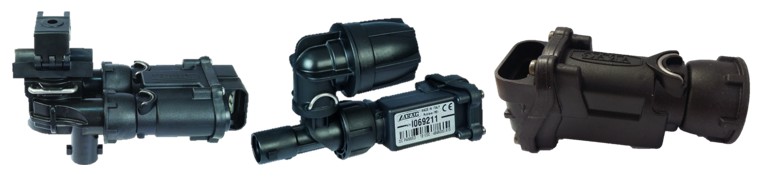

SELTRON NOZZLE HOLDERS
What is SELETRON?
SELETRON is a cutting-edge electronic shut-off nozzle valve that, applied to ARAG nozzle holders, allows the separated control of every single nozzle. The electronic parts embedded in the electronic valve control the actuator and the communication with the computer receiving the opening/ closing commands and outputting the information about valve status.
Twin hinged clamp-type crop spraying nozzle holders, equipped with SELETRON valve.
Clamps available suitable for tubes ø ¾ and 22mm.
Boom-end model also available.
Replacement solenoid (both single and twin) and spare diaphragms available.
