REGULATOR VALVES
Regulator Valves, aka Reg Valves or Proportional Control Valves, are studied and developed to adjust the flow where the treatments applications vary in proportion with engine rpm
ELECTRIC REG VALVES
Electric proportional control valve with flange connection.
Specific for use with BRAVO and DELTA computers: new larger-diameter drive system, with wear-proof coating for a longer life.
Fiberglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Internal resettable fuse (disconnecting power for 20 seconds)
Max. Pressure : 20b
Max. Flow Rate : 150l’
Powe Supply voltage : 12Vdc4
Electric proportional control valve with T-FORK connection.
Specific for use with BRAVO and DELTA computers: new larger-diameter drive system, with wear-proof coating for a longer life.
Fiberglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Internal resettable fuse (disconnecting power for 20 seconds)
Max. Pressure : 20b
Max. Flow Rate : 150l’
Powe Supply voltage : 12Vdc
Electric proportional control valve with shaped ball. 2-way with fork couplings and modular manifold.
The shaped ball allows a more accurate and linear regulation also at a low flowrate.
Ball and rotation pin in AISI 316 STAINLESS steel.
Ball sealing seats in TEFLON®.
Internal O-rings in Viton®.
Flange fixing bolts in STAINLESS steel, protected by the valve body.
Available with T6-fork coupling.
Max. Pressure : 12b
Max. Flow Rate : 320l’
MANUAL REG VALVES

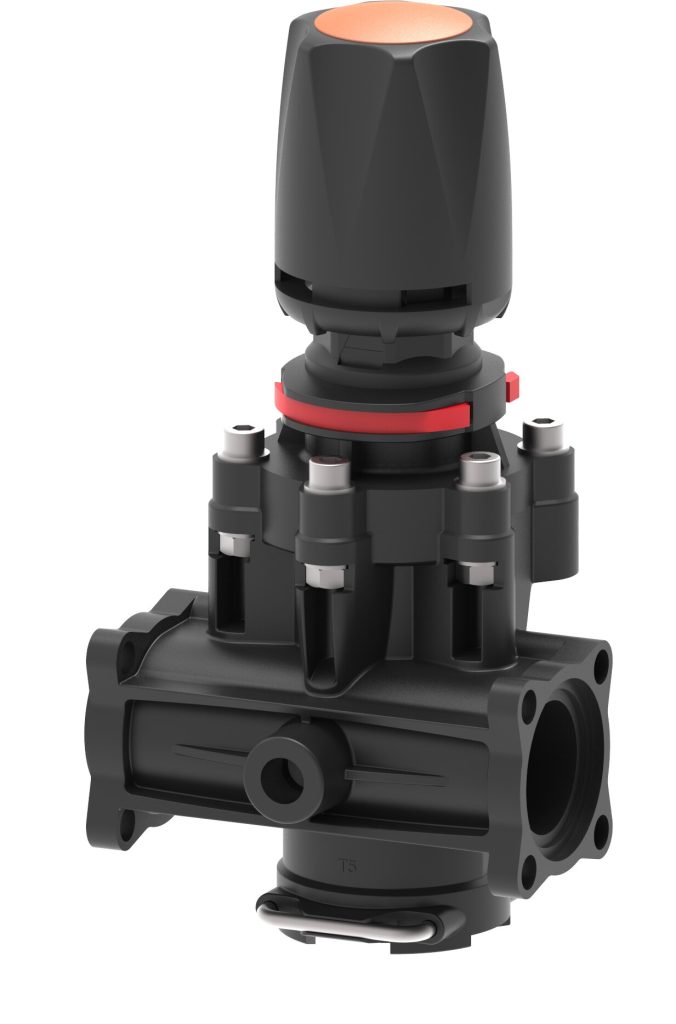

Manual diaphragm pressure relief control valve with flanged coupling to manifold and T5 fork coupling for the by-pass.
By-passes the excess liquid and maintains constant line pressure.
Equipped with a separation diaphragm for enhanced control sensitivity fiberglass reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Max. Pressure : 40b
Max. Flow Rate : 150l’

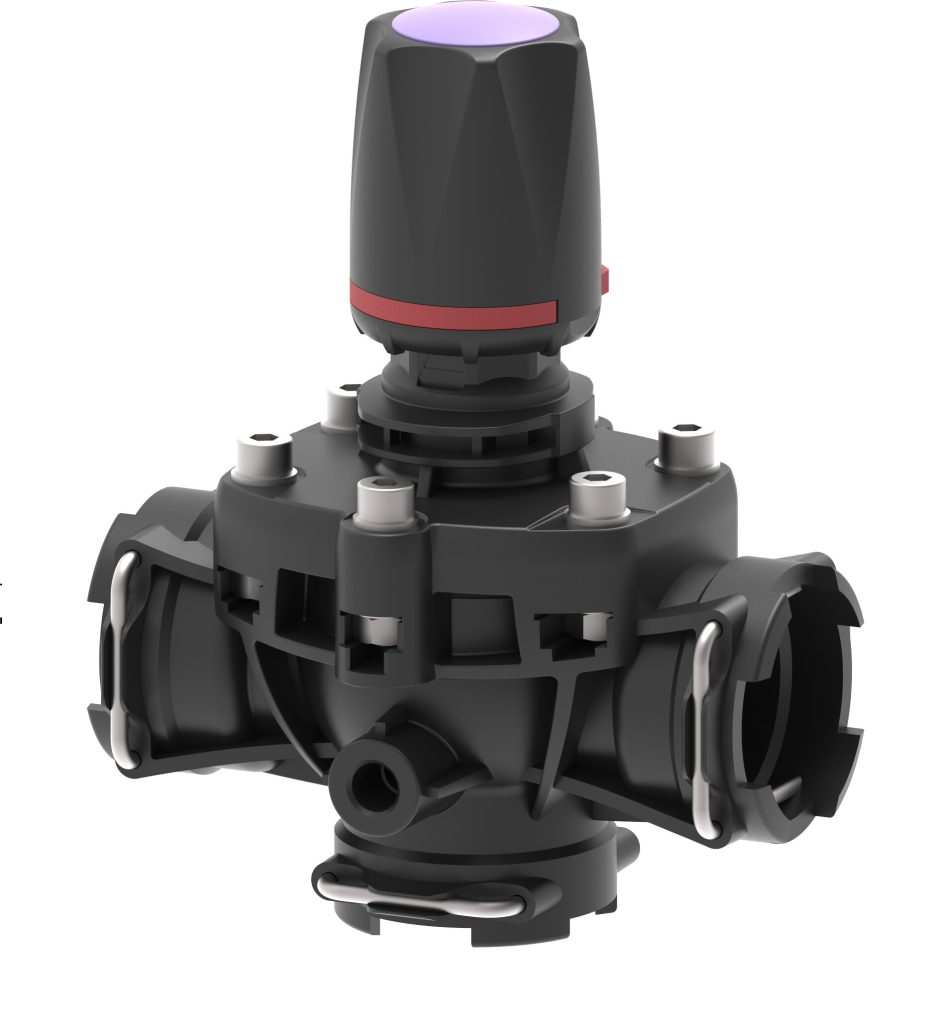

Manual diaphragm pressure relief control valve with T6 fork coupling.
By-passes the excess liquid and maintains constant line pressure
Equipped with a separation diaphragm for enhanced control sensitivity fiberglass reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Max Flow Rate : 450l’
Max Pressure : 12b

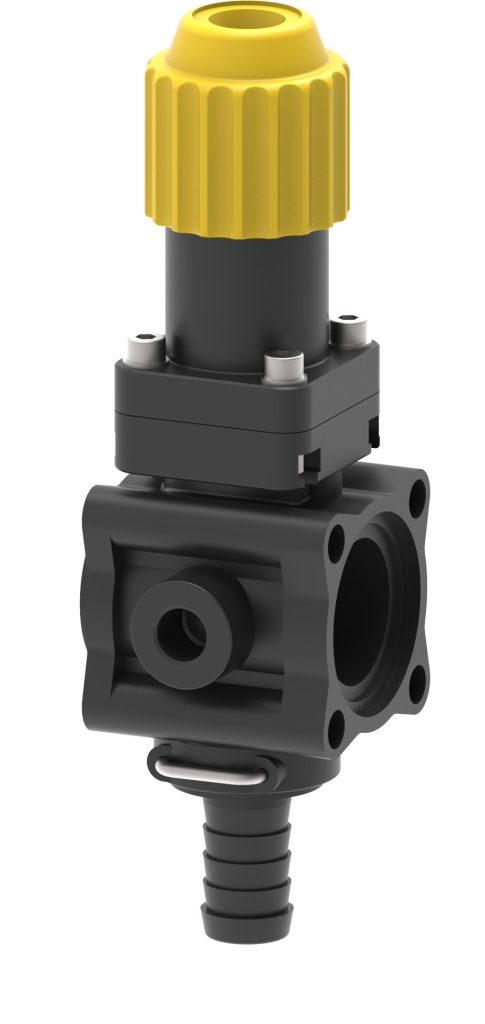

Manual proportional control valve with flanged coupling to manifold.
Adjusts the flow in the control units in which treatments vary in proportion with engine rpm (DPM)
Fiberglass reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Max Flow Rate : 100l’ / 150l’ – depending on model
Max Pressure : 40b
